Posso integrar o AXIS P7316 com analytics de vídeo?

Sim, este produto suporta analytics de vídeo nativamente através da plataforma ACAP.

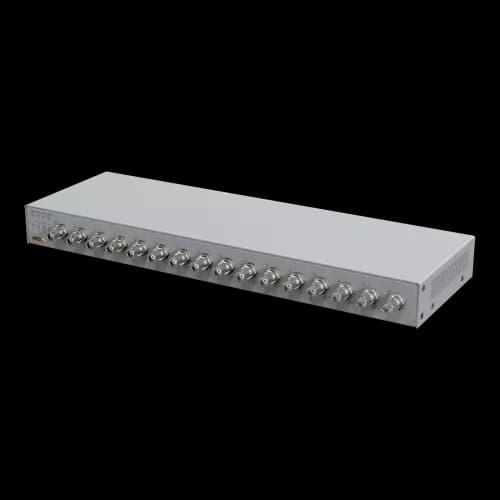

AXIS P7316 from AXIS COMMUNICATIONS - Video Encoder, viewed from its left angle

Clique para ampliar

Solicitar Orçamento

Garantia de 5 anos

AXIS P7316 Video Encoder

Name: AXIS P7316 Video Encoder
Brand: Axis Communications
SKU: AXIS P7316
Availability: InStock

Modelo: AXIS P7316

Entender código

Solicitar Orçamento

Solução profissional AXIS P7316 Video Encoder da Axis Communications

zipstream
edge storage
analytics

✓Disponível no Brasil🔥Em AltaACAPDocker

Baixar Datasheet

Visão Geral

zipstream
edge storage
analytics

O AXIS P7316 é um codificador de vídeo robusto com oito canais para migração de sistemas analógicos para vigilância em rede, oferecendo capacidade de processamento ampliada e compatibilidade total com câmeras analógicas HD até 4K. O equipamento suporta resoluções TVI de alta definição, CVI de alta definição, HD analógico e resolução padrão, com processamento independente de cada canal. Diferente dos DVRs tradicionais, oferece múltiplos fluxos simultaneamente em H.264, H.265 e Motion JPEG com taxa de até 30 fps em 1080p em todos os oito canais. Interface RS-485/RS422 integrada possibilita controle de câmeras PTZ analógicas, enquanto entradas/saídas configuráveis permitem integração com sensores, relés e dispositivos externos para acionamento de luzes, aberturas de portas e reprodução de áudio. A segurança cibernética é prioridade no P7316 com Axis Edge Vault que protege o ID do dispositivo Axis e simplifica autorização na rede. Firmware assinado digitalmente e inicialização segura garantem que apenas código autorizado seja executado, prevenindo adulteração do sistema operacional mesmo após restauração para padrões de fábrica. Criptografia HTTPS, suporte IPv6, controle de acesso IEEE 802.1X, filtro IP configurável e autenticação de dois fatores completam a camada de proteção contra acessos não autorizados. Tecnologia Axis Zipstream em H.265 reduz largura de banda e armazenamento em até 50% comparado ao H.264, especialmente em resoluções altas. Armazenamento na borda via microSD, suporte a análise inteligente de movimento, detecção de áudio e armazenamento em rede NAS complementam funcionalidades avançadas. Alimentação por PoE IEEE 802.3af/802.3at simplifica instalação com único cabo, operando de 0°C a 50°C com consumo máximo de 72W. Gabinete em metal com design modular oferece montagem em parede ou rack, dimensões de 220 x 42 mm e peso 850g. Uma única licença AXIS Camera Station gerencia todos os oito canais de codificação. Atualizações contínuas de firmware garantem suporte de primeira classe e evolução contínua da segurança, com garantia de 5 anos do fabricante incluindo suporte técnico prioritário.

Especificações Técnicas

ACAP SuportadoDocker

Model

4x ARTPEC-7 Memory 4x 1024 MB RAM, 512 MB Flash Battery backed-up real-time clock Video Video compression H.264 (MPEG-4 Part 10/AVC) Baseline, Main and High profiles H.265 (MPEG-H Part 2/HEVC) Main profile Motion JPEG Resolution 176x144/176x120 (PAL/NTSC) to 720x576/720x480 (PAL/NTSC) High definition TVI, high definition CVI and high definition analog HD (1280x720 and 1920x1080) 4x one channel for resolutions above 1080p (1920x1080)1 Frame rate 25/30 fps in all resolutions up to 1080p Up to 30 fps in quad view in full resolution 1080p 4x one channel Quad HD up to 25/30 fps 4x one channel 4K up to 15 fps Video streaming Multiple, individually configurable streams in H.264, H.265 and Motion JPEG Axis Zipstream technology in H.264 and H.265 Controllable frame rate and bandwidth VBR/ABR/MBR H.264/H.265 Quad view Image settings Rotation: 0°, 90°, 180°, 270°, de-interlace filter, Compression, color, brightness, contrast, aspect ratio correction, mirroring of images, text and image overlay, polygon privacy mask, video termination, sharpness, noise reduction Pan/Tilt/Zoom Wide range of analog PTZ cameras supported, drivers included in the firmware Up to 100 preset positions/camera, Guard tour, PTZ control queue Supports Windows compatible joysticks Compatible with Coaxitron® by Pelco Audio Audio streaming Two-way, full duplex Audio encoding 24bit LPCM, AAC-LC 8/16/32/48 kHz, G.711 PCM 8 kHz, G.726 ADPCM 8 kHz, Opus 8/16/48 kHz, Configurable bit rate Audio input/output 8 analog or digital external microphone input or line input, and 4 line output Network IP address Four IP address, one per four channels Security IP address filtering, HTTPS2 encryption, IEEE 802.1x (EAP-TLS)2, network access control,user access log, multi-level user, Axis Edge Vault with Axis device ID Network protocols IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTP/2, HTTPS2, TLS2, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP®, SNMP v1/v2c/v3 (MIB- II), DNS/DNSv6, DDNS, NTP, PTP, NTS, RTSP, RTP, SRTP/ RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCPv4/ v6, ARP, SSH, LLDP, CDP, MQTT v3.1.1, Secure syslog (RFC 3164/5424, UDP/TCP/TLS), Link-Local address (ZeroConf) 1. When you enable one channel for resolutions above 1080p (1920x1080), it disables channel 3 in that section. 2. This product includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit. (openssl.org), and cryptographic software written by Eric Young (eay@cryptsoft.com).

System integration

Application Programming Interface Open API for software integration, including VAPIX® and AXIS Camera Application Platform; specifications at axis.com One-click cloud connection ONVIF® Profile G, ONVIF® Profile M, ONVIF® Profile S, and ONVIF® Profile T, specification at onvif.org Video management systems Compatible with AXIS Camera Station Edge, AXIS Camera Station Pro, AXIS Camera Station 5, and video management software from Axis’ partners available at axis.com/vms. Event conditions Device status: IP address removed, network lost, new IP address, storage failure, system ready Edge storage: recording ongoing, storage disruption I/O: manual trigger, virtual input MQTT subscribe PTZ: PTZ malfunctioning, PTZ movement, PTZ preset position reached, PTZ ready Scheduled and recurring: scheduled event Video: average bitrate degradation, live stream open, tampering Video encoder: video connected Event actions Guard tours, upload of images or video clips, notification, overlay text, preset positions, recordings, SNMP trap messages, status LED, video clips MQTT publish Data streaming Event data Analytics Applications Included AXIS Video Motion Detection, active tampering alarm Support for AXIS Camera Application Platform enabling installation of third-party applications, see axis.com/ acap Approvals EMC EN 55032 Class A, EN 61000-3-2, EN 61000-3-3, EN 55035, EN 61000-6-1, EN 61000-6-2 Australia/New Zealand: RCM AS/NZS CISPR 32 Class A Canada: ICES-3(A)/NMB-3(A) Japan: VCCI Class A Korea: KS C 9835, KS C 9832 Class A USA: FCC Part 15 Subpart B Class A Safety IEC/EN/UL 62368-1 Environment IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78 Network NIST SP500-267 Cybersecurity ETSI EN 303 645, BSI IT Security Label Cybersecurity Edge security Software: Signed OS, brute force delay protection, digest authentication and OAuth 2.0 RFC6749 Client Credential Flow/OpenID Authorization Code Flow for centralized ADFS account management, password protection, AES-XTS-Plain64 256bit SD card encryption Hardware: Secure boot Network security IEEE 802.1X (EAP-TLS, PEAP-MSCHAPv2)3, IEEE 802.1AE (MACsec PSK/EAP-TLS), IEEE 802.1AR, HTTPS/HSTS3, TLS v1.2/v1.33, Network Time Security (NTS), X.509 Certificate PKI, host-based firewall Documentation AXIS OS Hardening Guide Axis Vulnerability Management Policy Axis Security Development Model AXIS OS Software Bill of Material (SBOM) To download documents, go to axis.com/support/ cybersecurity/resources To read more about Axis cybersecurity support, go to axis.com/cybersecurity 3. This product includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit. (openssl.org), and cryptographic software written by Eric Young (eay@cryptsoft.com).

Casing

Metal casing 1U stand alone, rackmount or wallmount Color: NCS S 5502-B Sustainability PVC free

Power

max 32 W Connectors 16 pcs analog video BNC inputs 8 pcs 3.5 mm mic/line in 4 pcs 3.5 mm audio line out 1 pc 1000 BASE-TX Ethernet (RJ45) 1 pc auxiliary ethernet (RJ45) 1 pc Gbps SFP slot 4 pcs terminal block for up to 4 configurable external input/output 4 pcs terminal block for RS485/RS422 serial communication (full duplex) 1 pc DC input terminal block Storage Support for microSD/microSDHC/microSDXC card and encryption Recording to network-attached storage (NAS) For SD card and NAS recommendations see axis.com Operating conditions 0 °C to 50 °C (32 °F to 122 °F) Humidity 10–85% RH (non-condensing) Storage conditions -40 °C to 65 °C (-40 °F to 149 °F) Humidity 5-95% RH (non-condensing) Dimensions 44 x 145 x 440 mm (1.7 x 5.7 x 17.3 in) Weight 2100 g (4.6 lb) Included accessories Installation guide, Windows® decoder 1-user license, mains power supply, mounting kit (incl 2 mount brackets and 4 rubber feet) and connector kit (8 pcs 2- pin RS485/RS422 plugs, 4 pcs 6-pin I/O plugs) Optional accessories For accessories, see axis.com Languages English, German, French, Spanish, Italian, Russian, Simplified Chinese, Japanese, Korean, Portuguese, Polish, Traditional Chinese, Dutch, Czech, Swedish, Finnish, Turkish, Thai, Vietnamese Warranty 5-year warranty, see axis.com/warranty
